Intelligent automation system integration

Automatic storage application

The storage system produced by USUN is an automated system composed of high-level stereoscopic shelves, access machines, various types of forklifts, warehousing systems, AGV/AMR, control systems and peripheral equipment. Use the automated storage system to continuously check expired products or find inventory, prevent defective inventory, and improve management. The automated warehousing system can make full use of storage space, accomplish online control of equipment through a computer, process quickly and accurately, and perform inventory management, data processing according to reasonable data.

高層立體貨架(RACK)

High-level stereoscopic shelf(RACK)

Stacker CRANE(CRANE)

Peripheral conveying / transportation

WMS

WMS

Product Highlights

產品介紹

Always provide service from user point of view
Extend peripheral automation solution application

High-level stereoscopic shelf(RACK)

The storage structure can divide by：

  • Build in(Rack –supported)：It is part of building structure, not only storing goods but also a supporting structure of the building, better Integrity and strong earthquake resistance.
  • Independent (Free-standing)：The shelf is independent to the original structure easy to design, and the construction period is short

The shelf composition can be divided into：

  • 牛腿焊接式貨架(Cantilever Type)：Strong strength, longer construction period, suitable for such as Taiwan or areas with frequent earthquakes。
  • 橫樑組立式貨架(Beam Type)：Simple structure, can be assembled on site, but less earthquake resistance

The storage form can be divided into：

  • 單庫位 (Single Deep)：Single corresponding storage space (left/right) in the roadway
  • 雙庫位(Double Deep)：Compare to the single deep, corresponding depth storage space (left/right) in the roadway

Automatic storage of long-length objects, disc type, cylinder type and oil cylinder type：

Customized for special goods, carrying about 100 ~ 8000 kg.

Stacker(CRANE)

According to the type of transportation：

  • Uini load：Transported by pallet or tray, load > 1000kg。
  • Mini load：Transported by material boxes or plastic boxes, , load <50kg。

According to the type of control：

  • Manual：Fully controlled manually
  • Semi-auto：Manual instructions, the equipment completes part of the operation automatically
  • Automatic：Fully automatic operation

Host control parts：

  • Movement unit
  • Lifting unit
  • Telescopic fork unit
  • Driver control unit
  • Sensor monitoring unit
  • Safety protection unit

Peripheral conveying / transportation

Peripheral conveying / transportation：

  • Roller conveyor
  • Chain conveyor
  • Belt conveyor
  • Transfer / lifting conveyor
  • Rotary conveyor
  • Vertical lifting conveyor

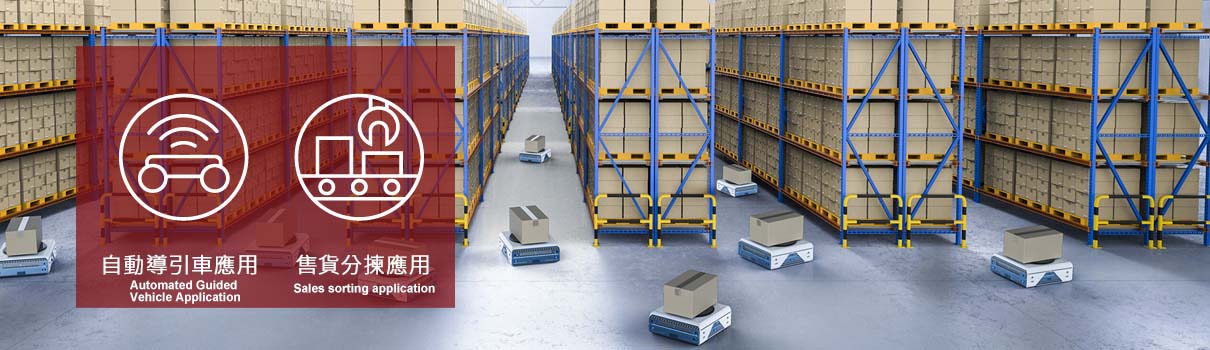

  • RGV/AGV transfer system

WMS&WCS management monitoring system

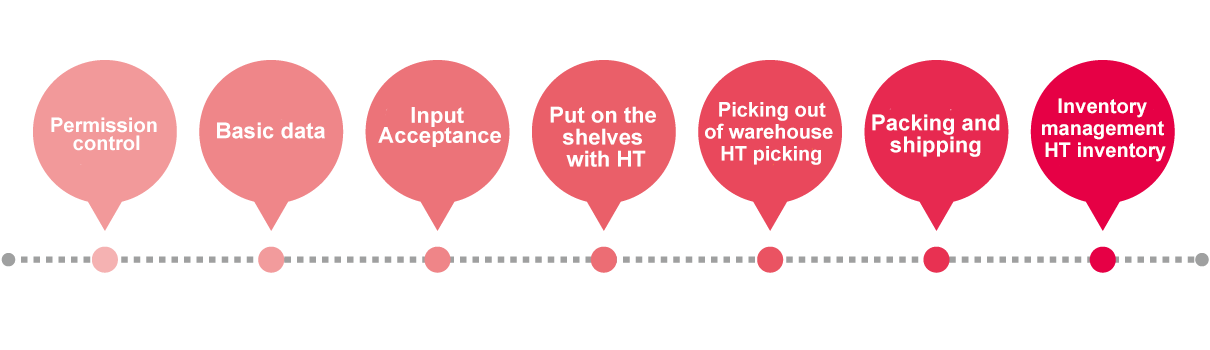

WMS features：

  • Convenient operation interface, easier to manage storage input and output
  • Comprehensive data analysis, storage level, inbound and outbound records, and full report statistics
  • Can provide ERP data interface to connect the company management system, or it can run completely independently

WCS特點：

  • Real-time monitoring of on-site equipment operation status and abnormal alarms
  • Receive WMS operating instructions and quickly deliver to related equipment
  • Accomplish the remote monitoring through connect the WCS computer via the network, and help the maintenance staff to quickly troubleshoot the abnormality remotely
